Jump Node in Grasshopper

By Published on:

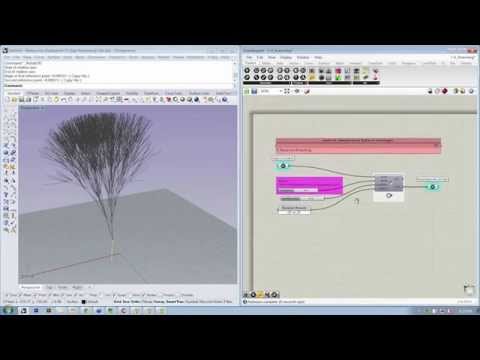

Similar to Section & Elevation tags in Revit, you can insert jump node in grasshopper at 2 locations to switch between those 2 views. In the video, if you jump to "5:53" in the timeline, you can view the use of jump node.
