Autocad Offset

By Published on:
Autocad is one of the oldest and the most used software in the field of architecture. Autocad has been around since 1982 and has undergone many updates and many commands have been added, according to users suggestions. One of such commands, that is most used in AutoCAD is "OFFSET"

Offset command has many added subcommands that can reduce the number of repetitive tasks performed by the users. When you activate the offset command, you can see the list of possible subcommands that can be executed with the offset, in the command line such as multiple, layer.

The following link from Autodesk help website gives us all the possible options that can be executed using offset command

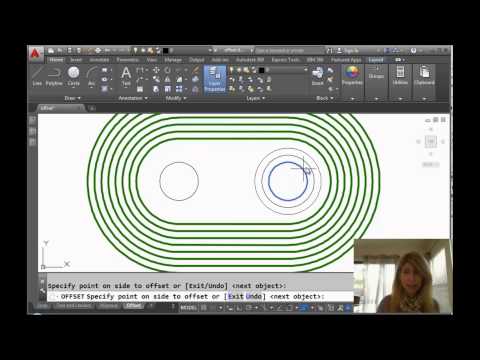

Lynn Allen is one of the expert AutoCAD user, who provides tutorials and also speaks in Autodesk university to share her knowledge of AutoCAD. She explains in detail the perks of offset command in her blog.
